Description: A frame to hold two Olympus Pen-F cameras mounted bottom to bottom, with lenses in perfect alignment and all dials & ports accessible, for stereoscopic VR. It needs to be hand-holdable and tripod mountable.

Project views: 267

Project status: New Now accepting: Designs

Design Type-Tier: technical-bronze

Design Price: US$100.00 | Payment Pending

Fabrication Price: Payment Pending

PROJECT IS PUBLIC - all registered You3Dit designers and fabricators can review your project and submit 3D models and fabrication quotes to this project. This dramatically improves your cost, quality and schedule options.

Order Number: 20180124213907-963-11-0

Material desired: n/a

Quantity desired: 1

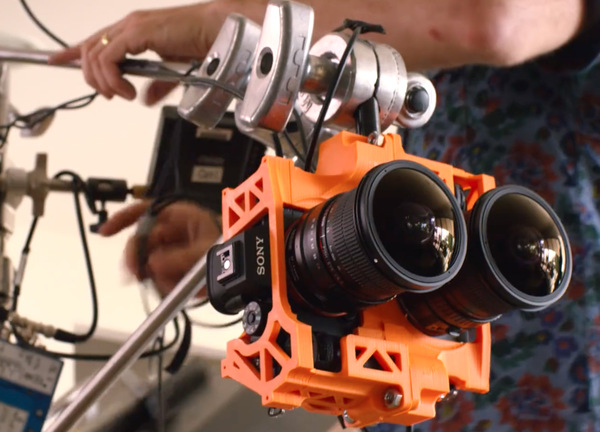

Additional Information: The cameras only have one place to mount them - a 1/4" thread on the bottom, directly under the lens. I'm using this configuration to shoot stereoscopically, and in order to get what they call the 'interaxial' distance (the distance between the centers of both lenses) to match human vision, the camera bodies need to be as tight together as I can get them. A small set screw can attach and align them, but once screwed together there's no way to A) hand-hold them and keep them stable, or more importantly B) mount them to anything like a tripod. I need a frame that screws together tightly around them to hold them together using only tension. It's also important that the port doors are accessible, as well as the hotshoe on the top (since additional equipment, like flash triggers, will need to be mounted there.) The photo I attached is an example of what I need, but made for different camera models. The Olympus Pen-F is smaller and lighter. I need something sturdy but it doesn't need to look fancy or refined. This will be for use not for sale. http://asia.olympus-imaging.com/product/dslr/penf/design.html https://www.turbosquid.com/3d-models/3d-model-photoreal-mirrorless-camera-olympus/1007976

Can you bring this project to life?

Created 2276d ago on:
24 Jan 2018 at 21:39:07
