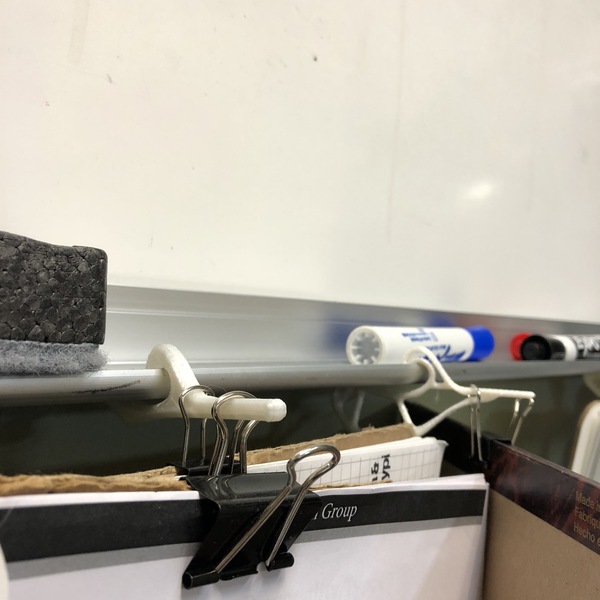

Description: I'd like to see how these two hooks...one made with conventional design methodologies and the other made with topology optimization...hold up using rapid prototyping tools outside of desktop FFF machines. MarkedForge, Carbon, FormLabs, MJF, etc.

Tags: TOOL, photo, Prototype, experiment, tools, TOOLING

Material: anything other than standard desktop FFF materials

Project views: 131

Project status: In Fabrication Now accepting: Fabrication Bids

Design Type-Tier: technical-bronze

Design Price: US$1995.00 | Payment Pending

Fabrication Price: Paid: US$102.00

PROJECT IS PUBLIC - all registered You3Dit designers and fabricators can review your project and submit 3D models and fabrication quotes to this project. This dramatically improves your cost, quality and schedule options.

Order Number: 20180918184831-1149-01-0

Material desired: anything other than standard desktop FFF materials

Quantity desired: 10

Design File Parameters:

x dimension [mm]: 80.16
y dimension [mm]: 5.00
z dimension [mm]: 33.13

area [mm^2]: 2613.52
volume [mm^3]: 2167.95
total vol (qty: 10)[mm^3]: 21679.50

Additional Information: Please quote for fabrication for a quantity of 5x parts of each design file below:

5x of topologically optimized design: https://www.dropbox.com/s/nvwjkasnnft9738/mccoy-iteration-01.stl?dl=0
5x of conventional design: https://www.dropbox.com/s/ue70rvqjlqfgget/white-board-hook-v3.stl?dl=0

Can you bring this project to life?

Updated 2522d ago on:
18 Sep 2018 at 18:48:31

<<

Generative Design vs. Regular Design for a whiteboard hook

>>
