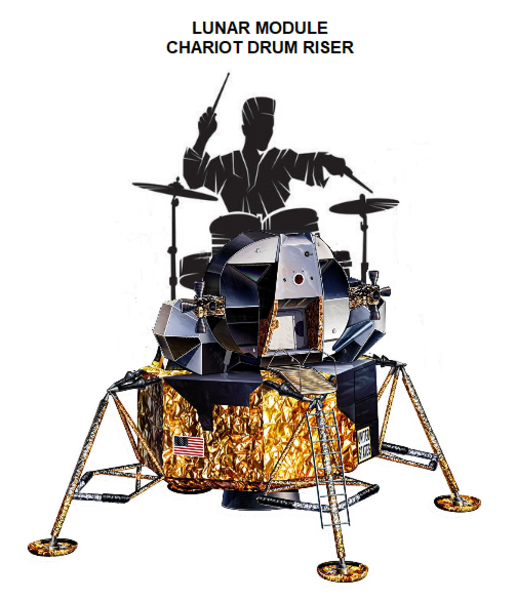

Description: A drum riser in the shape of the Apollo 11 Lunar Module. Cutaway or exposed Ascent Stage for kick drum to sit inside. Pedestal support system for drum kit to rest on. Detail on inside of Ascent Stage cockpit will depend on added cost to do it.

Project views: 364

Project status: New Now accepting: Designs

Design Type-Tier: technical-bronze

Design Price: US$100.00 | Paid: US$100.00

Fabrication Price: Payment Pending

PROJECT IS PUBLIC - all registered You3Dit designers and fabricators can review your project and submit 3D models and fabrication quotes to this project. This dramatically improves your cost, quality and schedule options.

Order Number: 20171003101951-881-11-1

Material desired: n/a

Quantity desired: 1

Additional Information: I have other drawings which can help to better understand the pedestal concept. The LEM legs will not support a complete drum kit on their own. An irregular convex octagon trussing could be designed for the Descent Stage frame. The pedestal will come through the bottom of the engine skirt all the way to the floor. The legs of the LEM will provide mostly stability rather than bulk support.
