Description: Hi there. I need to have 3D printed three (3) pocket door guides that are very close to the one modeled in the attached .stl file.
Project views: 191
Project status: New Now accepting: Designs
Design Type-Tier: simple-silver
Design Price: US$50.00 | Payment Pending
Fabrication Price: Payment Pending
Order Number: 20170502205912-796-11-0
Material desired: PLA or ABS
Quantity desired: 3
Design File Parameters:
x dimension [mm]: 44.80
y dimension [mm]: 25.00
z dimension [mm]: 15.00
y dimension [mm]: 25.00
z dimension [mm]: 15.00
area [mm^2]: 3865.87
volume [mm^3]: 6780.99
total vol (qty: 3)[mm^3]: 20342.98
volume [mm^3]: 6780.99
total vol (qty: 3)[mm^3]: 20342.98

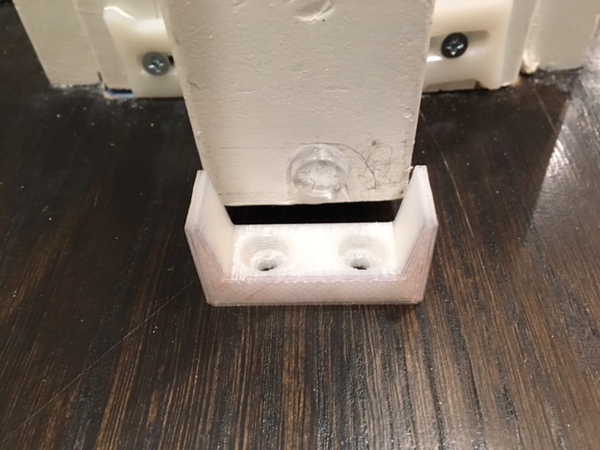

Additional Information: I've had one 3D printed by another service, but it is too small -- otherwise, it looks great. It's Clear color, and the material is "PLA or ABS".
My challenge is the guides I need to be printed need to be a little wider than the one in this .stl file (but the same height and depth). Specifically, I need two (2) that are 52 mm in total width (and 43.5 mm in the inner track part), and one (1) that is 47 mm n total width (and 43.5 mm in the inner track part). The height (25 mm) and depth (15 mm) needs to be the same on all three, just like in the .stl file.
The problem I'm having is I don't know how to re-configure the .stl file to increase the widths while leaving the other dimensions the same. Is this something (and the printing) that you can help me with?
Thank you!!
