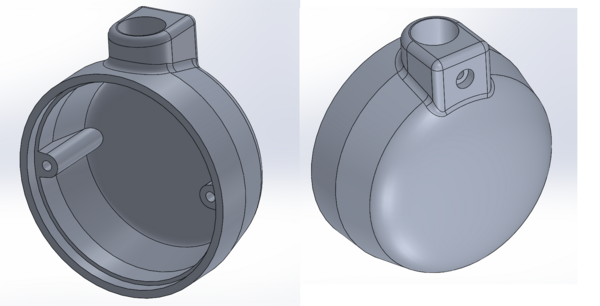

Description: Vespa turn signal replacement that uses the original amber lens.
Tags: sfmototype
Material: plastic
Project views: 142
Project status: Fabricated Now accepting: Fabrication Bids
Design Type-Tier: simple-bronze
Design Price: US$25.00 | Payment Pending
Fabrication Price: Payment Pending
Order Number: 20160927172921-594-01-0
Material desired: plastic
Quantity desired: 4
Design File Parameters:
x dimension [mm]: 81.66
y dimension [mm]: 38.10
z dimension [mm]: 71.86
y dimension [mm]: 38.10
z dimension [mm]: 71.86
area [mm^2]: 21160.60
volume [mm^3]: 38107.85
total vol (qty: 4)[mm^3]: 152431.39
volume [mm^3]: 38107.85
total vol (qty: 4)[mm^3]: 152431.39
Additional Information: I realized I modified my part but forgot to generate a new stl file. I uploaded the new file.
The vespa turn signals are prone to cracking when you tighten the set screw. Replacements are hard to find and when you do find they they are usually cracked too. This part will replace the back side of the turn signal and use the original amber lens.
Updated 3245d ago on:
27 Sep 2016 at 17:29:21
