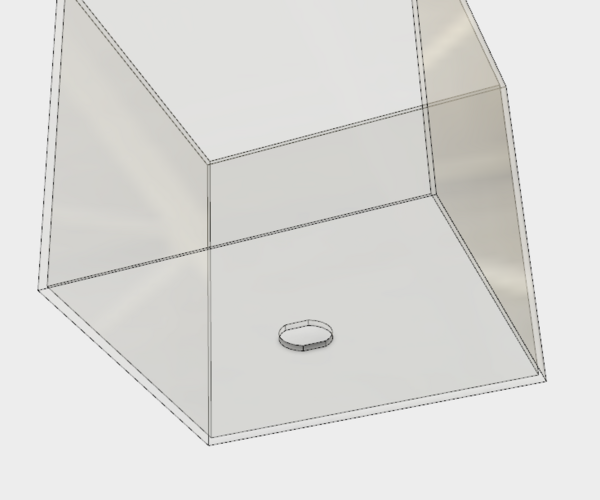

Description: Need a keyed hole cut out of the bottom of an acrylic box. 1/8" thick, centered. Client will provide 8"x8"x8" 0.2" thick acrylic box.

Tags: Prototype

Material: acrylic, client will provide the box

Project views: 227

Project status: Delivered Now accepting: Fabrication Bids

Design Type-Tier: simple-bronze

Design Price: US$995.00 | Payment Pending

Fabrication Price: Paid: US$30.00

PROJECT IS PUBLIC - all registered You3Dit designers and fabricators can review your project and submit 3D models and fabrication quotes to this project. This dramatically improves your cost, quality and schedule options.

Order Number: 20180612222619-1106-01-0

Material desired: acrylic, client will provide the box

Quantity desired: 1

Design File Parameters:

x dimension [mm]: 203.20
y dimension [mm]: 203.20
z dimension [mm]: 203.20

area [mm^2]: 404248.65
volume [mm^3]: 637351.04
total vol (qty: 1)[mm^3]: 637351.04

BUY NOW RE-ORDER

Additional Information: Just one hole in the center. Needs to allow pass through of this part: https://alternajar-store.com/products/bladealternajarblendtec

Please quote for rush processing (24 hour turn around). Parts can be delivered in the SF Bay Area anytime tonight before 20:00 PST.

DWG for bottom layout: https://www.dropbox.com/s/u21nr80nfxe15pv/CAL6-v01-imb-bottom.dwg?dl=0

Can you bring this project to life?

Updated 2472d ago on:
12 Jun 2018 at 22:26:19

<<

Hole in a box

>>
