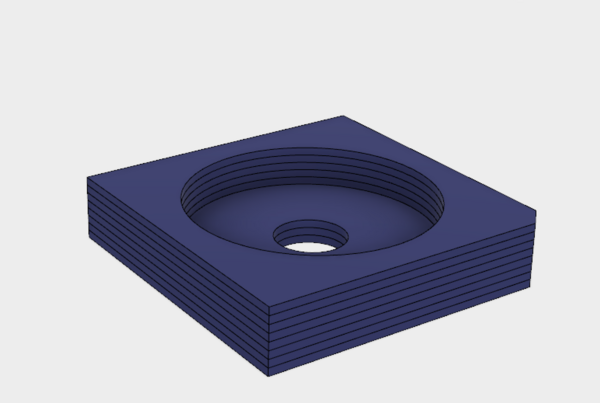

Description: need some acrylic plates to be fabricated. Color doesn't matter...but if we have a choice...a dark color like blue or black is preferred. Please quote for the entire set of parts (8x total parts; 5x big hole, 3x small hole).
Project views: 246
Project status: In Fabrication Now accepting: Fabrication Bids
Design Type-Tier: simple-bronze
Design Price: US$995.00 | Payment Pending
Fabrication Price: Paid: US$315.00
Order Number: 20180612223106-1107-01-0
Material desired: acrylic, need fabricator to supply
Quantity desired: 1
Design File Parameters:
x dimension [mm]: 196.35
y dimension [mm]: 5.08
z dimension [mm]: 196.35
y dimension [mm]: 5.08
z dimension [mm]: 196.35
area [mm^2]: 77938.41
volume [mm^3]: 171047.47
total vol (qty: 1)[mm^3]: 171047.47
volume [mm^3]: 171047.47
total vol (qty: 1)[mm^3]: 171047.47
Additional Information: Here's the files:
https://www.dropbox.com/sh/pne2ary76isk3q2/AAD197kUBGi9p5kXTmFmHFuJa?dl=0
Here are DWG files:
Small Hole: https://www.dropbox.com/s/o9sg6nwqe4aeiid/CAL6-v01-plate-spacer-small-hole%20v1.dwg?dl=0
Large Hole: https://www.dropbox.com/s/kiarkifb9v2aydv/CAL6-v01-plate-spacer-large-hole%20v1.dwg?dl=0
Please quote for rush processing (24 hour turn around). Parts can be delivered in the SF Bay Area anytime tonight before 20:00 PST.
Need 5x of the large-hole plates
Need 3x of the small-hole plates
Here are DWG files:
Small Hole: https://www.dropbox.com/s/o9sg6nwqe4aeiid/CAL6-v01-plate-spacer-small-hole%20v1.dwg?dl=0
Large Hole: https://www.dropbox.com/s/kiarkifb9v2aydv/CAL6-v01-plate-spacer-large-hole%20v1.dwg?dl=0
Please quote for rush processing (24 hour turn around). Parts can be delivered in the SF Bay Area anytime tonight before 20:00 PST.
Need 5x of the large-hole plates
Need 3x of the small-hole plates
